Neopariés

Crystallized Glass Ceramic Panels

QUOTE| |800.426.0279
Gallery
Case Studies

Neopariés® is a unique crystallized glass material, which is an ideal alternative to stone for interior and exterior walls, interior floors, counters and table tops. With a marble-like appearance, it is available in large, flat or curved panels. Stronger than marble or granite, it may be used in thinner and lighter configurations, and is nearly graffiti proof.

“If you do it right, it will last forever.”

-Massimo Vignelli

KEY FEATURES

  • Bright, smooth surface appearance
  • Large panel sizes -- 35-7/16" x 70-7/8" (900 mm x 1800 mm) and 47-1/4" x 94-1/2" (1200 mm x 2400 mm) (5/8" white only)
  • High resistance to staining, pollution, graffiti
  • For interior or exterior use
  • Can be formed into convex or concave curved panels
  • Available in white only
  • Excellent strength allows for use of thinner and lighter panels
  • Yields zero water absorption and nearly eliminates damage that can be caused by acids or alkalis
  • High sheen surface provides reflectivity of light which can allow the reduction of artificial lighting
  • Neopariés is available in both stock panels and cut to size configurations. Fabrication of the product is similar to that of natural stone products. Neopariés can be cut, profiled, machined and edge polished by those who are equipped and comfortable with natural stone fabrication.

Performance Data

Neopariés Marble Granite
Bending Strength (N/mm2) 41 11 14
MOH's Hardness 5.5 3 5.5 - 6.5
Thermal Expansion Coefficient(x10-6) 6.1 7.0 7.0
Acid Resistance 1% H2SO4 (mg/cm2) 0.2 267 26.2
Alkali Resistance 1% NaoH (mg/cm2) 0.7 7.8 2.6
Freeze/Thaw Resistance3 (%) 0.0 0.2 0.3
Water Absorption Rate4 (%) 0.0 0.3 0.4
Diffuse Reflection Rate (%) 80 42 44
  1. Weight loss of test piece of 25 x 25 x 5 mm after 24-hour immersion in 1%H2SO4 solution of 90°C.
  2. Weight loss of test piece of 25 x 25 x 5 mm after 24-hour immersion in 1% NaOH solution of 90°C.
  3. Weight loss of test piece of 15 x 15 x 10 mm after 25 cycles: immersion of test piece in water of 25°C for 2 days = exposure for 4 hours in a temperature of -20°C.
  4. Weight increasing rate of test piece of 25 x 25 x 15 mm after 48-hour immersion in water.

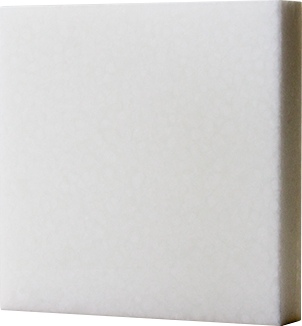

Colors

The uniform, marble-like appearance features a smooth, shiny surface providing a timeless look. Neopariés comes in white only.

TOOLS

View Photo Gallery

DOCS & DOWNLOADS

Product Fact Sheet
CSI Format Specs
