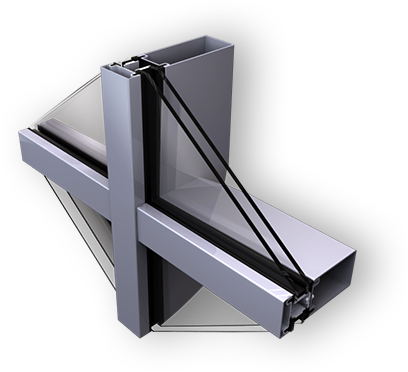

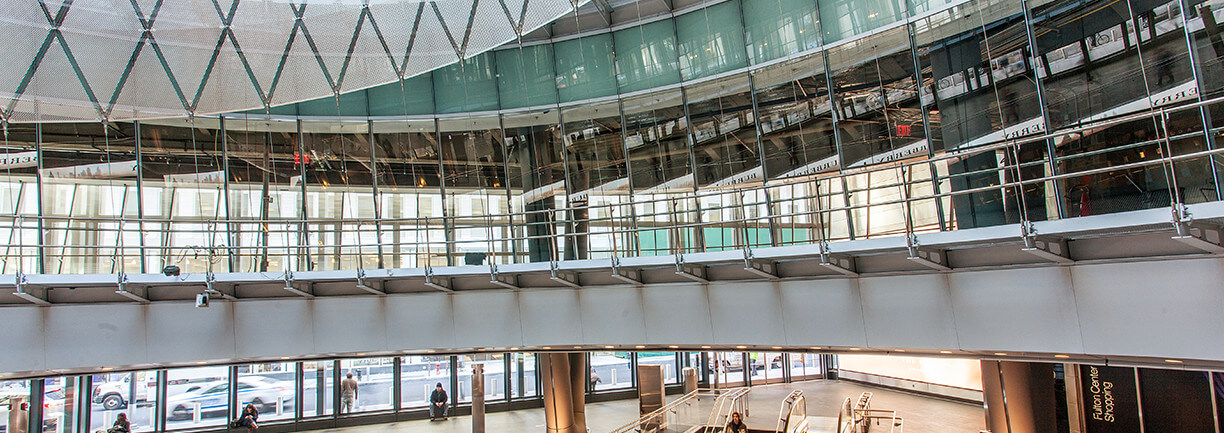

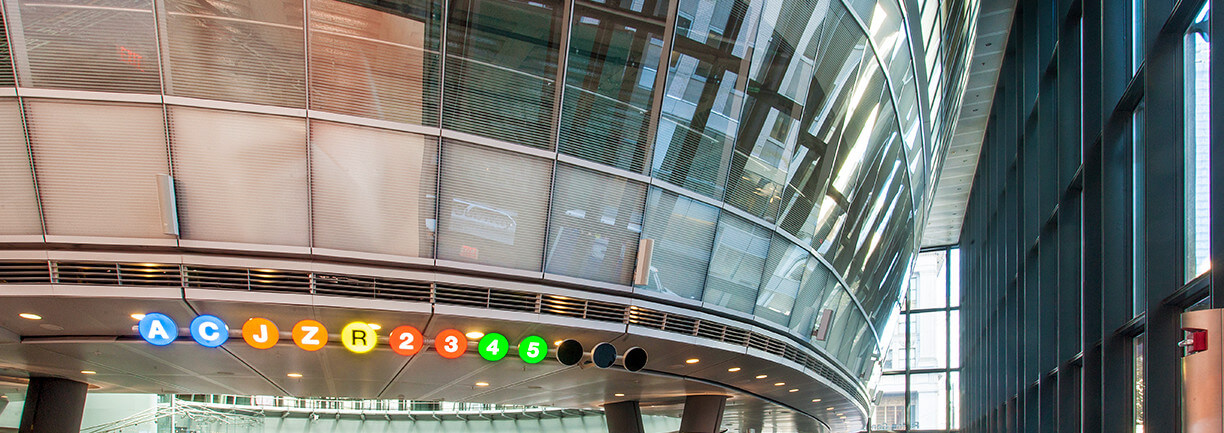

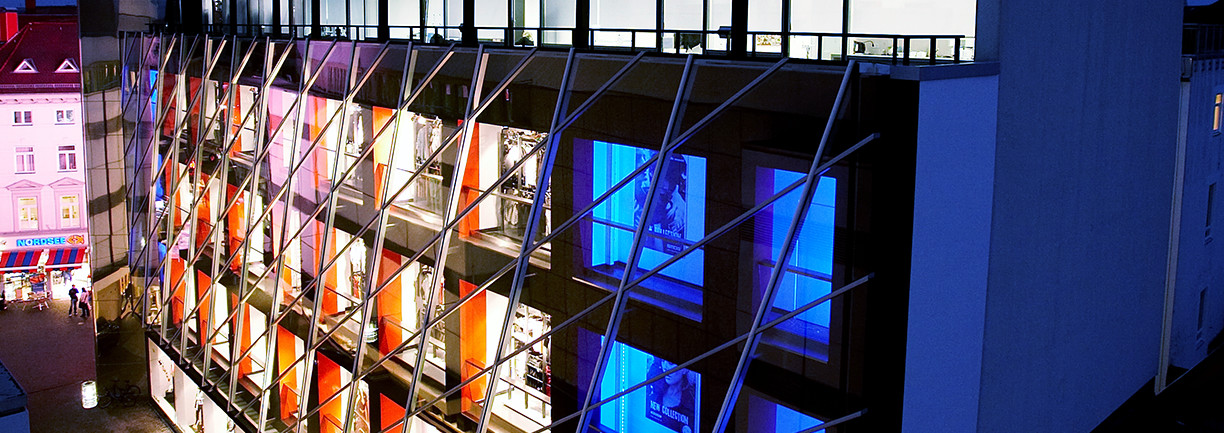

SteelBuilt Curtainwall® Systems give you all the advantages of steel: larger free spans, narrower sight lines and improved thermal performance over traditional aluminum systems. Utilized throughout Europe for many years, SteelBuilt Curtainwall Systems have been tested to North American standards for tremendous new design opportunities.

“A room is not a room without natural light.”

-Louis Kahn

KEY FEATURES


  • Three times the wind load capacity of a standard aluminum curtain wall
  • Three times the modulus of elasticity of aluminum, allowing for smaller profiles
  • Greater material strength than aluminum
  • Superior thermal performance and reduced thermal expansion than aluminum
  • Significantly larger spans of glazing than traditional aluminum systems
  • Water-tight curtain wall framing joints with no visible weld bead
  • Easy installation similar to typical pressure plate curtainwall
  • Low maintenance system
  • For interior or exterior use
  • Finish painted at the factory to match desired color scheme

Optional Features

  • Structural silicone is available in 2- or 4-sided applications for a smooth monolithic appearance. See SteelBuilt Curtainwall® SSG.
  • Stainless steel cover caps

Performance Data


PERFORMANCE OVER TYPICAL ALUMINUM SYSTEMS
Thermal Transmittance1 (btu/hr + ft2 + °F)

Glass U-Factor2 Overall U-Factor
Stainless Steel Cover Cap
Overall U-Factor
Aluminum Cover Cap
0.48 0.51 0.51
0.44 0.49 0.49
0.30 0.35 0.36
0.247 0.31 0.32
0.123 0.19 0.20
  1. U-Factors are determined in accordance with NFRC 100. Approximate values only, actual values will vary depending on specific product configuration per project requirements.
  2. Glass properties are based on center of glass values and are obtained from your glass supplier.

Testing


Frame tests performed in accordance with:

AAMA 501.1 Dynamic Water Penetration
ASTM E283 Air Performance
ASTM E331 Static Water Penetration
ASTM E330 Structural Performance

Comparison

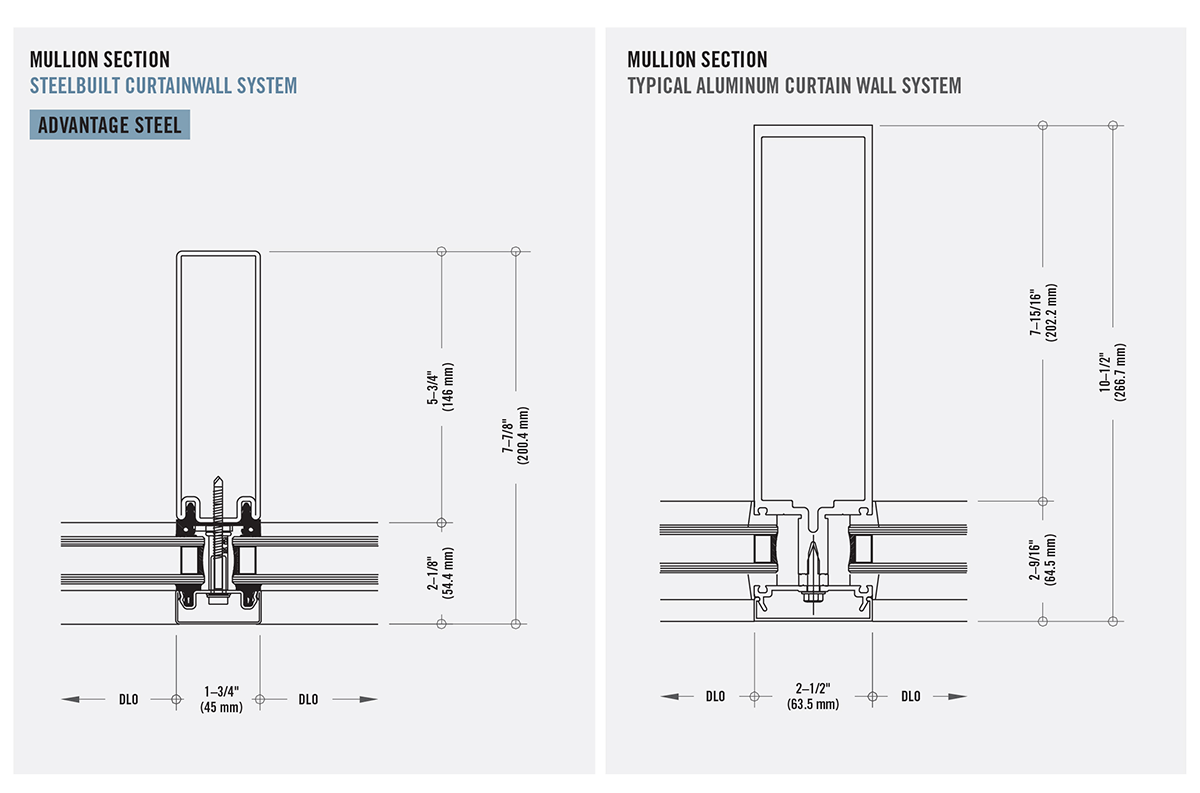

SteelBuilt Curtainwall® Family  vs.  Typical Aluminum Curtain Wall

Givens:
Design Wind Load: 30 psf
  |
Module/Vertical to Vertical spacing:5'-0"
  |
Rectangular Verticals: Captured
