Pilkington Profilit with TGP ProColor®
Channel Glass with High Performance Color Coating

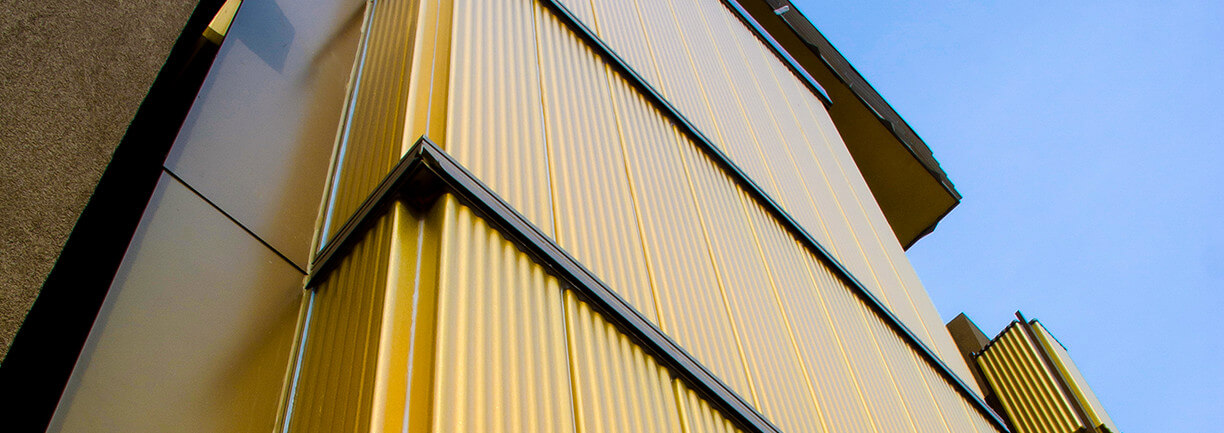

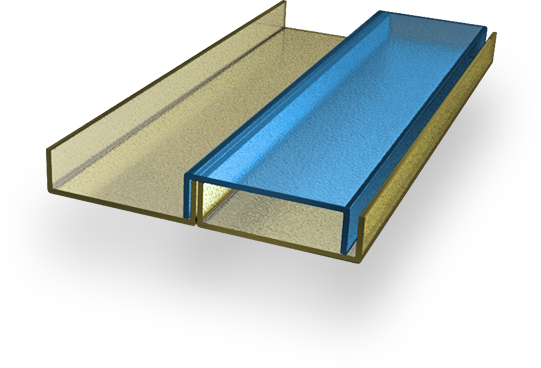

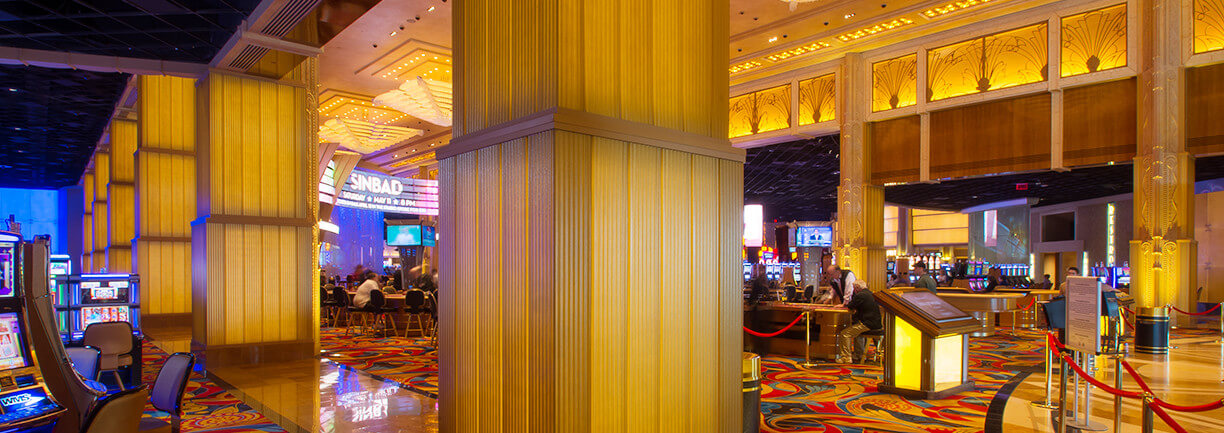

Enhance your channel glass design with TGP ProColor, durable, high performance color coating. A TGP exclusive in the U.S. and Canada, TGP ProColor does not require tempering and is bonded to the glass with remarkably high adhesion strength. It is available in a wide array of opaque or metallic colors with varying translucency, and in custom-blended colors.
“Architecture is the thoughtful making of space.”
|Approx. face width:||
|Approx. flange height:||2.36 in (60 mm)|
|Thickness:||.28 in (7 mm)|
|Max length:||Up to 23 ft (Varies according to windload and project requirements)|
|Weight/ft2 of channel surface (including frame & components):||12 lbs / ft2 dual glazed
7 lbs / ft2 single glazed
|Light Transmission:||70-75% (uninsulated, varies with coating)|
|U-Value (glass only):||.49 (uninsulated), .40 (Low-E uninsulated), .21 (Low-E with 16 mm Lumira® aerogel insulation), .19 (Low-E with 25 mm Lumira aerogel insulation)|
|Solar Heat Gain Coefficient:||.70 (uninsulated), .45 (Low-E uninsulated), .42 (Low-E with 16 mm Lumira aerogel insulation), .31 (Low-E with 25 mm Lumira aerogel insulation)|
|STC Rating:||42 dB (uninsulated), 44 dB (with Lumira aerogel insulation)|
Pilkington Profilit has been tested to meet the following standards: AAMA 501.4, AAMA 101, AAMA 1801-97, AAMA/NWWDA 101/1, S.297, ASTM F 588-97, NFRC 100-97, ANSI Z97.1-1984, CPSC 16CFR 1201, Category II (with safety film). All testing carried out by Architectural Testing Inc., York, PA. Formal test reports are available by contacting Technical Glass Products.
For added energy efficiency, Pilkington Profilit can be filled with Lumira® aerogel, a new class of lightweight insulation material produced by Cabot Corporation which is ideally suited for daylighting design. Lumira aerogel promotes soft, even light dispersion, reduces unwanted noise and resists condensation. TGP is the exclusive supplier of Lumira aerogel for channel glass systems.
Learn more about Pilkington Profilit with Lumira® aerogel insulation.

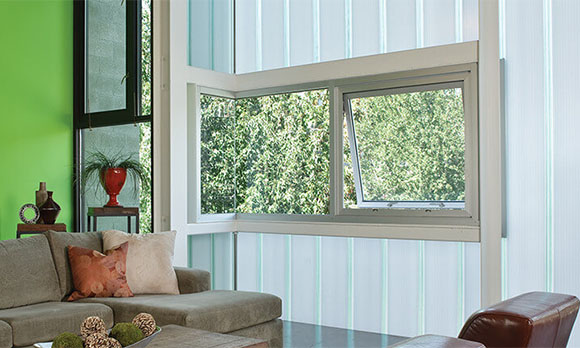

Channel Glass Basics
Learn about channel glass design options, installation, product testing, contribution to LEED standards, applications ranging from single story to multi-story, and more.
Envision what Pilkington Profilit looks like in a real-world setting. Use our innovative Texture Tool to view available textures and finish options. See what Pilkington Profilit looks like up close, as well as a representation of how it affects the light and alters the view in a room.
Get a feel for the various textures, colors and options available for Pilkington Profilit™ products. Simply click through tabs to get a realistic picture of how it will look in your next project.
