Pilkington Profilit Insulation

Insulated Channel Glass System

QUOTE| |800.426.0279

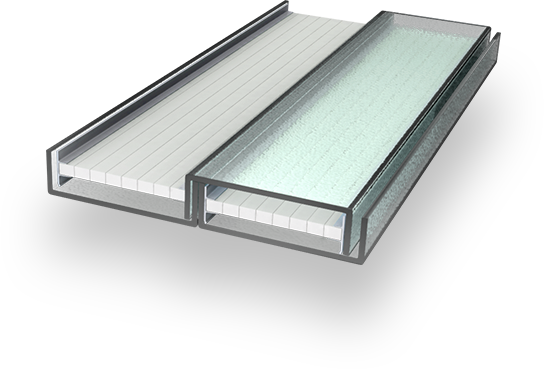

Pilkington Profilit can be filled with Lumira aerogel, a lightweight insulation material produced by Cabot Corporation. The exceptional thermal performance of Lumira aerogel helps increase energy efficiency. Lumira aerogel also promotes soft, even light dispersion, reduces unwanted noise and resists condensation. TGP is the exclusive supplier of Lumira aerogel for channel glass systems.

“To love beauty is to see light.”

-Victor Hugo


  • Lumira® aerogel can be used in combination with any Pilkington Profilit™ channel glass system
  • Safe and non-hazardous translucent surface-treated amorphous silica
  • Increases light diffusion: eliminates glare, allows soft, even, light dispersion
  • Improves acoustic performance: minimizes unwanted noise
  • Exceptional thermal performance: reduces heat loss and minimizes solar heat gain
  • UV stable: maintains performance over time
  • Resists moisture: prohibits growth of mold, mildew and fungus
  • Provides green solutions: reduces building design loads and conserves energy
  • Adheres to guidelines: meets and exceeds strict building codes
  • Easy to install: no special tools are required
  • For projects requiring extra thermal performance, contact TGP for custom Lumira aerogel information
  • View perimeter framing system

Performance Data

K 25/60 Series Profilit Uninsulated LUMIRA® AEROGEL Panel* 16 mm (CLEAR) LUMIRA® AEROGEL Panel* 25mm (Clear)
U Value (Glass Only) 0.49 0.21 0.19
Light Transmission 70% 50% 38%
Solar Heat Gain Coeff. (SHGC) (NFRC 200) 0.63 0.42 0.31
Coeff. (STC) - (E 90) 42 44 44
Condensation Resistance Factor (CRF) (AAMA 1503) G 70
F 60
G 79
F 60
G 79
F 60


Pilkington Profilit has been tested to meet the following standards: AAMA 501.4, AAMA 101, AAMA 1801-97, AAMA/NWWDA 101/1, S.297, ASTM F 588-97, NFRC 100-97, ANSI Z97.1-1984, CPSC 16CFR 1201, Category II (with safety film). All testing carried out by Architectural Testing Inc., York, PA. Formal test reports are available by contacting Technical Glass Products.


For added energy efficiency, Pilkington Profilit can be filled with Lumira® aerogel, a new class of lightweight insulation material produced by Cabot Corporation which is ideally suited for daylighting design. Lumira aerogel promotes soft, even light dispersion, reduces unwanted noise and resists condensation. TGP is the exclusive supplier of Lumira aerogel for channel glass systems.
