Pilkington Profilit Hurricane

Hurricane-Rated Channel Glass System

QUOTE| |800.426.0279

Pilkington Profilit™ Hurricane is the only tested and approved hurricane impact channel glazing system in North America. The glass is available in a variety of colors and textures with varying translucency. It is dual glazed for exterior applications and is available with optional light transmitting insulation.

“If you want to see the sunshine, you have to weather the storm.”

-Frank Lane

KEY FEATURES


  • Rated for Miami-Dade at 60 PSF design load and maximum glass length of 10'
  • Rated for Florida State Product approval for non impact glass as well as impact-rated glass, restricted to vertical orientation only

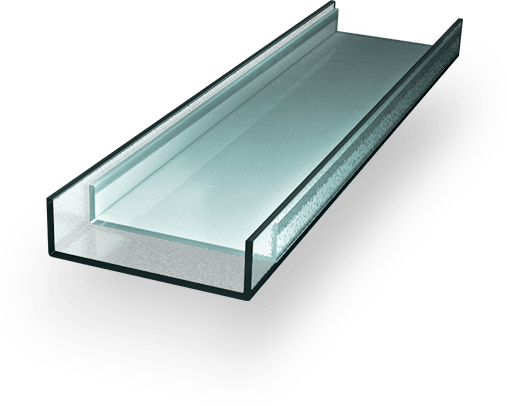

  • Polycarbonate laminated to the interior surface of the glass
  • Allows passage of light while maintaining privacy
  • May be insulated with Lumira® aerogel insulation, for energy efficiency
  • Excellent light transmission
  • Sound insulation (up to 42 db uninsulated, 44 db with Lumira aerogel insulation)
  • Aluminum perimeter frame provides additional structural strength
  • Minimal maintenance
  • View perimeter framing system

Performance Data


Approx. face width: K70 (10-5/16")
Approx. flange height: 60 mm (2-3/8")
Max length: 10'-0" (Max DLO=9'-10-3/4")
Weight/ft2 of channel surface (including frame & components): 14 lb/ft²
Light Transmission: 70-75% (varies with coating and insulation)
U-Value (glass only): .50 (uninsulated), .34 (with 16 mm Lumira® aerogel insulation), .28 (with 25 mm Lumira aerogel insulation)
STC Rating: 42 dB (uninsulated), 44 dB (with Lumira aerogel insulation)
System Depth: 3-3/4":

Testing


Pilkington Profilit Hurricane has been tested to meet the following standards: Miami/Dade County, NOA number 17-0112.16, TAS 201, TAS 202, TAS 203, Florida State Product approval # FL 10792, AAMA 501.4, AAMA 101, AAMA 1801-97, AAMA/NWWDA 101/1, S.297, ASTM F 588-97, NFRC 100-97, ANSIZ97.1-1984, CPSC 16CFR 1201, Category II. All testing carried out by Architectural Testing Inc., York, PA.; Fenestration Testing Labs, Medley, FL; and ETC Labs, Rochester, NY. Formal test results are available by contacting Technical Glass Products.

Note: Exceptions to hurricane rating approval include horizontally glazed orientation, radius, serpentine and all glass corner configurations.

Insulation


For added energy efficiency, Pilkington Profilit can be filled with Lumira® aerogel, a new class of lightweight insulation material produced by Cabot Corporation which is ideally suited for daylighting design. Lumira aerogel promotes soft, even light dispersion, reduces unwanted noise and resists condensation. TGP is the exclusive supplier of Lumira aerogel for channel glass systems.

Learn more about Pilkington Profilit with Lumira® aerogel insulation.
