Translucent Linear Channel Glass System
Gallery
Case Studies

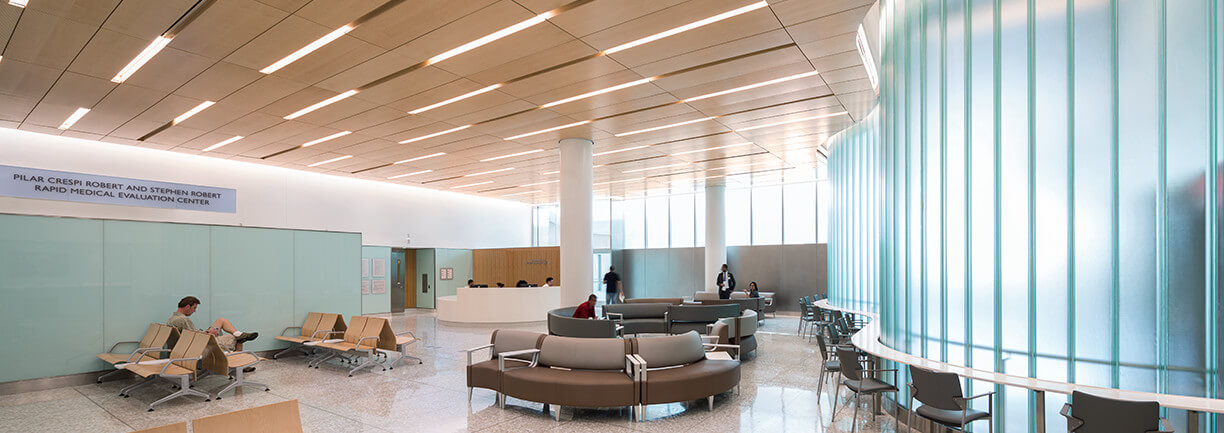

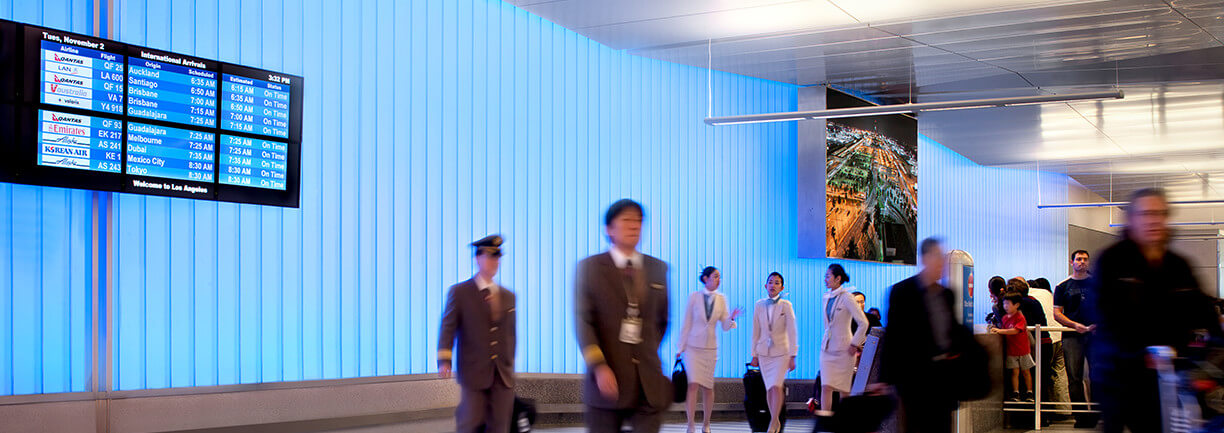

The Pilkington Profilit™ channel glass wall system consists of self-supporting cast glass channels and an extruded metal perimeter frame. The end result is a wall that obscures vision but allows light to pass through. It can be used in interior or exterior applications, and installed vertically or horizontally.

“It lets in light, allows for privacy and is visually interesting day or night.”

-Jim Graham, principal, Graham Baba Architects

KEY FEATURES


  • Available in long channel lengths – up to 23 ft (7 m)
  • May be tempered or filmed to meet impact safety requirements
  • Allows passage of light while maintaining privacy
  • May be insulated with Lumira® aerogel for energy efficiency
  • Sound insulation (up to 42 db uninsulated, 44 db with Lumira aerogel insulation)
  • Can be utilized in curved walls
  • Installs vertically or horizontally
  • Aluminum perimeter frame provides additional structural strength
  • Interior applications may be installed into wood jambs or millwork instead of TGP’s aluminum framing
  • Minimal maintenance
  • Proven performance – used in Europe for more than 30 years
  • Most channels available with pinstripe wires
  • View perimeter framing system

Performance Data


Approx. face width:
K22 K25 K32
9.13 in (232 mm) 10.31 in (262 mm) 13.03 in (331 mm)
Approx. flange height: 2.36 in (60 mm)
Thickness: .28 in (7 mm)
Max length: Up to 23 ft (Varies according to windload and project requirements)
Weight/ft2 of channel surface (including frame & components): 12 lbs / ft2 dual glazed
7 lbs / ft2 single glazed
Light Transmission: 70-75% (uninsulated, varies with coating)
U-Value (glass only): .49 (uninsulated), .40 (Low-E uninsulated), .21 (Low-E with 16 mm Lumira® aerogel insulation), .19 (Low-E with 25 mm Lumira aerogel insulation)
Solar Heat Gain Coefficient: .70 (uninsulated), .45 (Low-E uninsulated), .42 (Low-E with 16 mm Lumira aerogel insulation), .31 (Low-E with 25 mm Lumira aerogel insulation)
STC Rating: 42 dB (uninsulated), 44 dB (with Lumira aerogel insulation)

Testing


Pilkington Profilit has been tested to meet the following standards: AAMA 501.4, AAMA 101, AAMA 1801-97, AAMA/NWWDA 101/1, S.297, ASTM F 588-97, NFRC 100-97, ANSI Z97.1-1984, CPSC 16CFR 1201, Category II (with safety film). All testing carried out by Architectural Testing Inc., York, PA. Formal test reports are available by contacting Technical Glass Products.

Insulation


For added energy efficiency, Pilkington Profilit can be filled with Lumira® aerogel, a new class of lightweight insulation material produced by Cabot Corporation which is ideally suited for daylighting design. Lumira aerogel promotes soft, even light dispersion, reduces unwanted noise and resists condensation. TGP is the exclusive supplier of Lumira aerogel for channel glass systems.

Learn more about Pilkington Profilit with Lumira® aerogel insulation.

Design Ideas


Channel Glass Basics

Learn about channel glass design options, installation, product testing, contribution to LEED standards, applications ranging from single story to multi-story, and more.

See Channel Glass Basics

Texture Tool

Envision what Pilkington Profilit looks like in a real-world setting. Use our innovative Texture Tool to view available textures and finish options. See what Pilkington Profilit looks like up close, as well as a representation of how it affects the light and alters the view in a room.

See Texture Tool

Design Options

Get a feel for the various textures, colors and options available for Pilkington Profilit™ products. Simply click through tabs to get a realistic picture of how it will look in your next project.

See Design Options

TOOLS


BIM 3D Model
CAD Request
View Photo Gallery

DOCS & DOWNLOADS


Product Fact Sheet
CSI Format Specs
Spec Manual/Details - US
Spec Manual/Details - Canada
Product FAQ
Care and Warranty
